Captions and subtitles with Camtasia

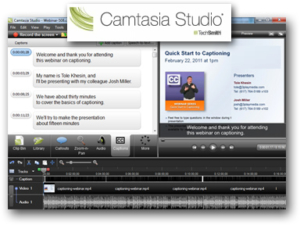

Camtasia Studio screenshot with captions button selectedThe new Camtasia Studio 7.1 allows you to add captions or subtitles to a video to make it fully accessible and ADA compliant. Camtasia Studio also lets you add search functionality during the production process. This lets viewers search through the spoken content and jump to a specific part of the video. You can learn more about adding captions to your Camtasia videos by visiting the Camtasia support site.


Step 1 – Export Your Camtasia Video

  1. Open your video in Camtasia Studio.
  2. Screenshot of Camtasia with Flash Templates window. No Controls selected under Template. Fit in 320x240Select File > Produce and Share. Then select Custom Production Settings and on the next screen select MP4/FLV/SWF – Flash Outputs (default). Click Next.
  3. On the Flash Templates screen, select No Controls under Template Appearance and 320×240 for the Size Fit In. Click Next.
  4. On the Video Options screen, leave all the default options and click Next.

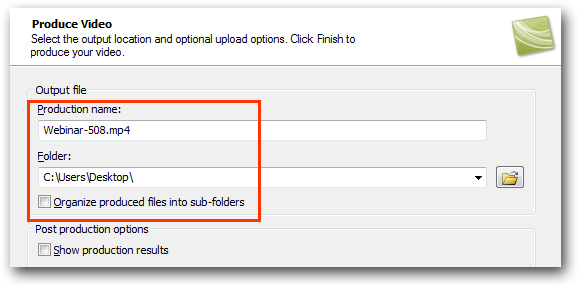

  5. On the Produce Video screen, enter a filename and specify where to save it. Then uncheck the box “Organize produced files into subfolders”. Click Finish.Adding closed captions or subtitles with Camtasia
  6. After your MP4 video has been created, play it to make sure that everything looks and sounds correct.


Step 2 – Submit Your Camtasia Video for Captioning

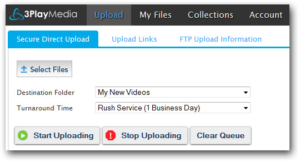

  1. Screenshot of Camtasia with upload button selected. Secure Direct Upload tab is open. Destination folder and turnaround time are selected with options to start uploading, stop uploading, or clear queueLog into your 3Play Media account.
  2. Select Upload and specify the turnaround requirements.
  3. You will receive an email alert when the captions file is ready for use.


Step 3 – Download Your Captions File

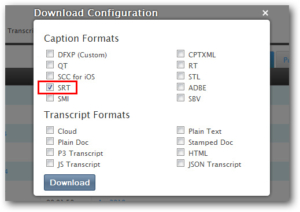

  1. Download Configuration. SRT is checked off under Caption FormatsFrom your 3Play Media account, navigate to My Files. Click the download link beside the appropriate file and select SRT. Alternately, you can download the SMI caption format, which is also supported by Camtasia.
  2. Unzip the file after it downloads.

Step 4 – Add Captions To Your Camtasia Video

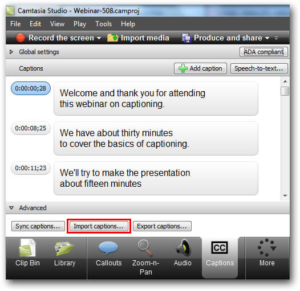

  1. Screenshot of Camtasia Studio recording window with import captions selectedOpen your video in Camtasia Studio.
  2. Select Tools > Captions.
  3. Under Advanced, select Import Captions and select the SRT captions file that you downloaded in Step 3.
  4. Save the video and select File > Produce and Share. Select Custom Production Settingsand MP4/FLV/SWF – Flash Outputs(default) on the next screen. Click Next.

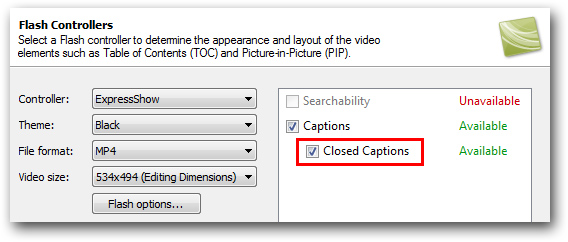

  5. On the Flash Controllers screen, check the box ”Closed Captions” if you want the captions to be available in the produced video. This will place a CC button in the controls area. Also, note that in order to be able to toggle the captions on/off, it is better to set the caption to “On Video” rather than “Under Video”.

Adding closed captions or subtitles with Camtasia

How to Adjust the Placement and Style of Your Captions

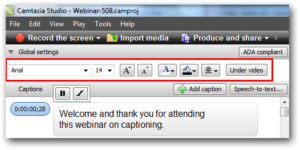

  1. Screenshot of Camtasia Studio. Text formatting bar is selected with font name, size, color, background color, alignment.Under Global Settings, there is a formatting toolbar that lets you control font size and style, as well as paragraphing and background color.
  2. The placement of captions can be overlaid “On Video” or underneath “Under Video”. If you plan to produce “closed” captions, which means that your users will have the ability to toggle captions on/off, the caption placement should be set to “On Video”.

How to Make Your Camtasia Video Searchable

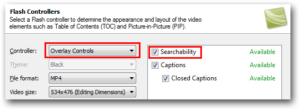

  1. Flash Controllers window in Camtasia. Overlay Controls selected in Controller. Searchability checked offAfter you have added captions, select File > Produce and Share. Select Custom Production Settings and MP4/FLV/SWF – Flash Outputs (default) on the next screen. Click Next.
  2. On the Flash Controllers screen, select Overlay Controls and check the box ”Searchability”. Click Next to proceed through the subsequent screens and click Finish to begin rendering your video.
  3. Once your video has been produced, you can open it any web browser. Users can access the search bar by hovering over the video. Searching for a word returns a list of results containing that word. You can click on any of the results to jump to that part of the video.

Adding closed captions or subtitles with Camtasia

Learn how to easily create accessible and engaging video content with captions!
