How to Set Up Live Auto Captions for Zoom Meetings ūüóďÔłŹ

Follow this guide to schedule live auto captions for a Zoom meeting once Zoom has been linked to your 3Play Media project.

office workers sitting at a round table discussing ideas

In order to be able to fully implement Live Auto Captions within 3Play Media, you must be the Host of the Zoom Meeting!

‚ě°ÔłŹ Step 1: Schedule The Meeting Within the Zoom Web Client



zoom navigation bar

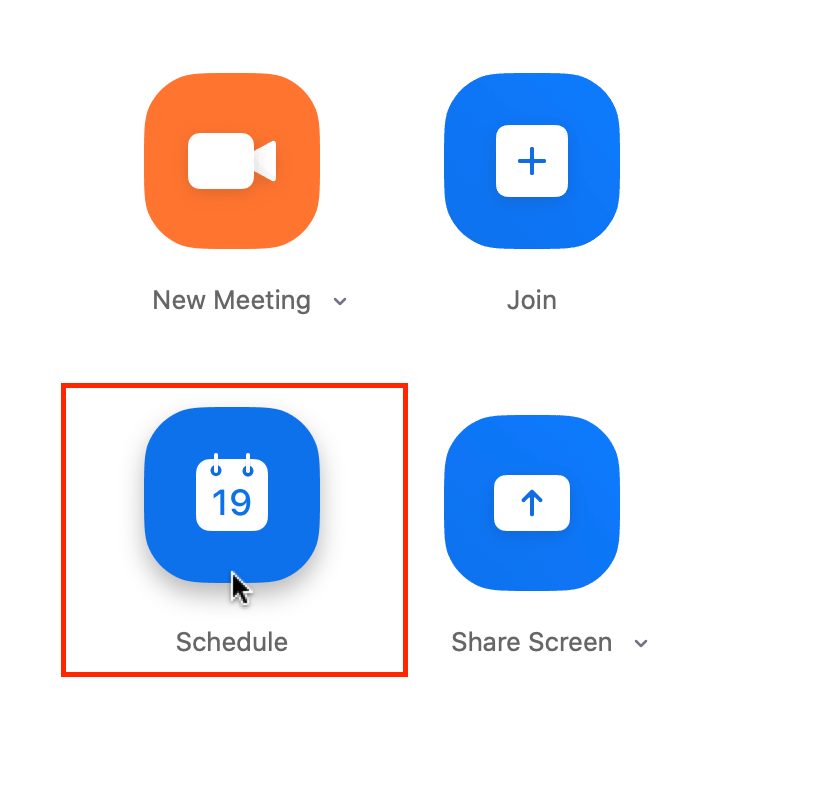

Login to zoom.us and schedule a meeting.

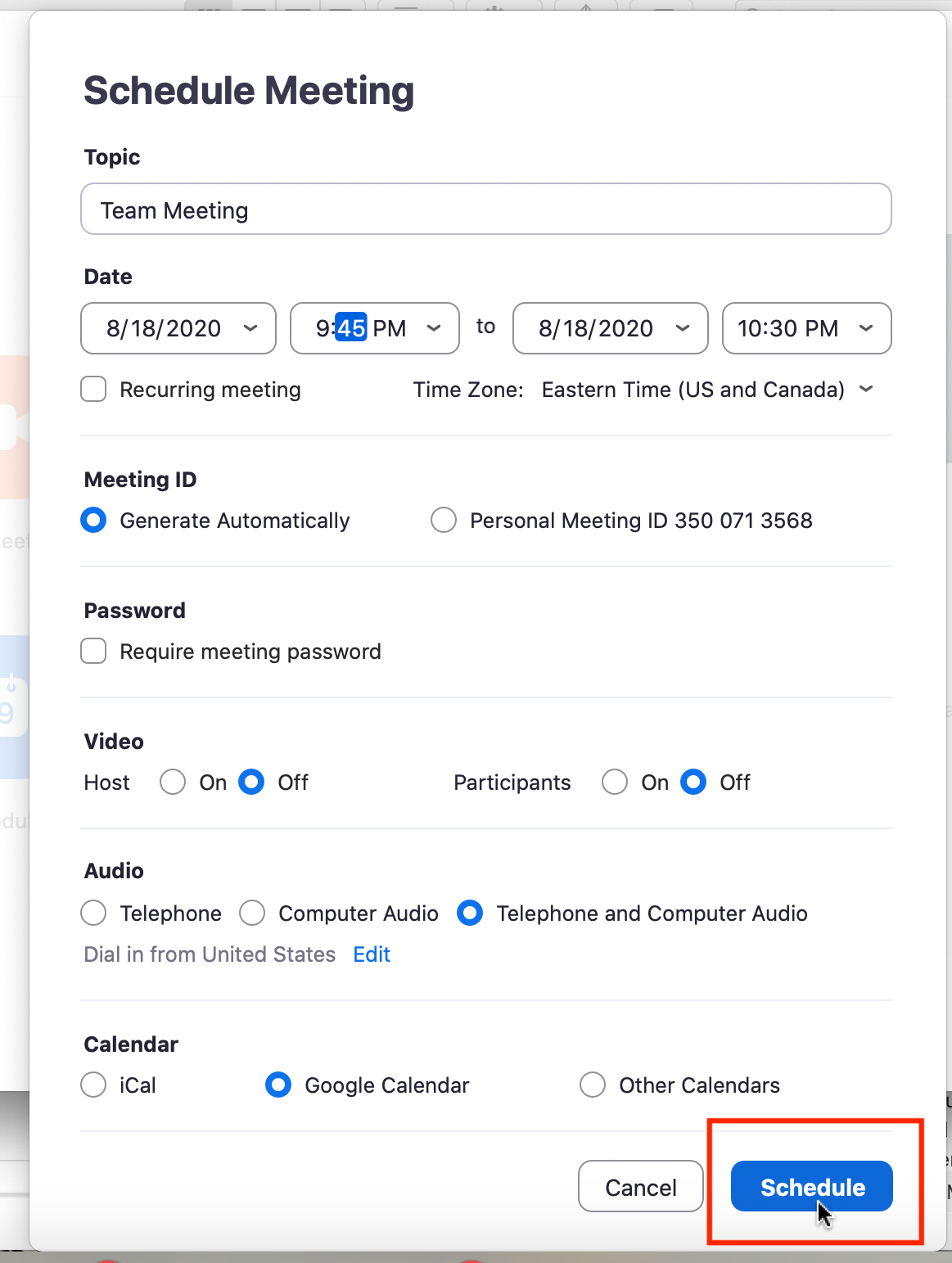

zoom schedule a meeting page



Schedule the meeting for the right time, adding any other information and settings necessary. If the preliminary Zoom and 3Play linkages have been successfully created, most of the settings in a meeting will not have an impact on the live captions and should be set based on personal preference.

Only the meeting ID will have an impact on the necessary steps to get live captions.



zoom meeting ID section



If Generate Automatically is selected, please continue with the rest of this guide. If Personal Meeting ID is selected, there will be an additional step outlined later in Step 2.



‚ě°ÔłŹ Step 2: Schedule the Event¬†

Part 1

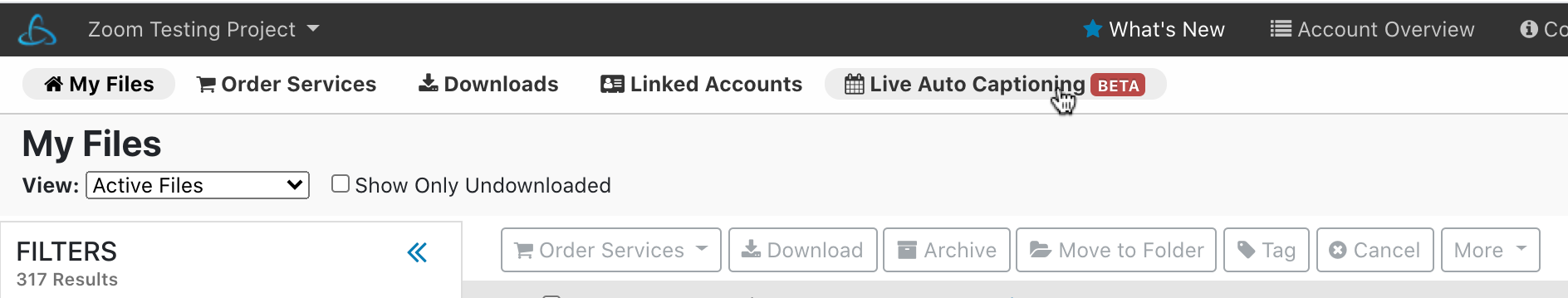

3Play Media My Files page

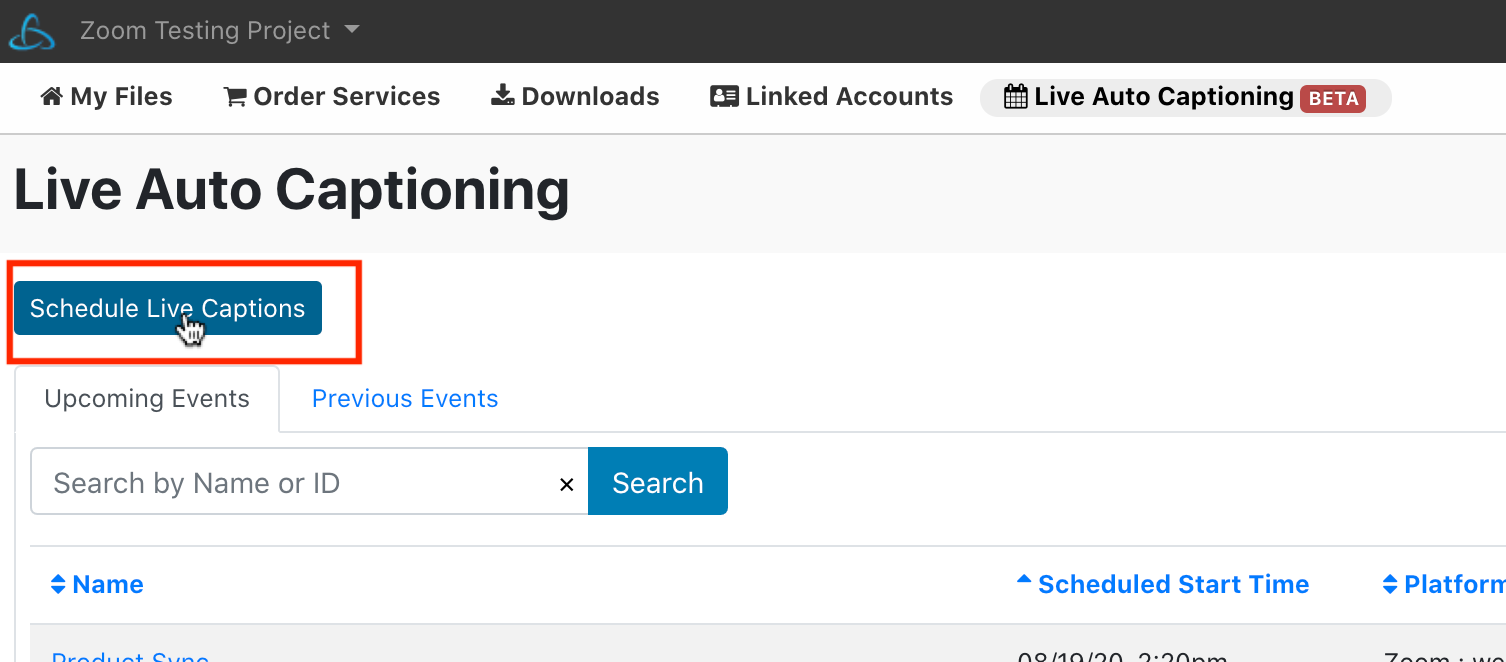

Navigate to your 3Play Media account and click Live Auto Captioning in the top navigation bar.

(In order for this step to work, you must have the Zoom integration set up properly)

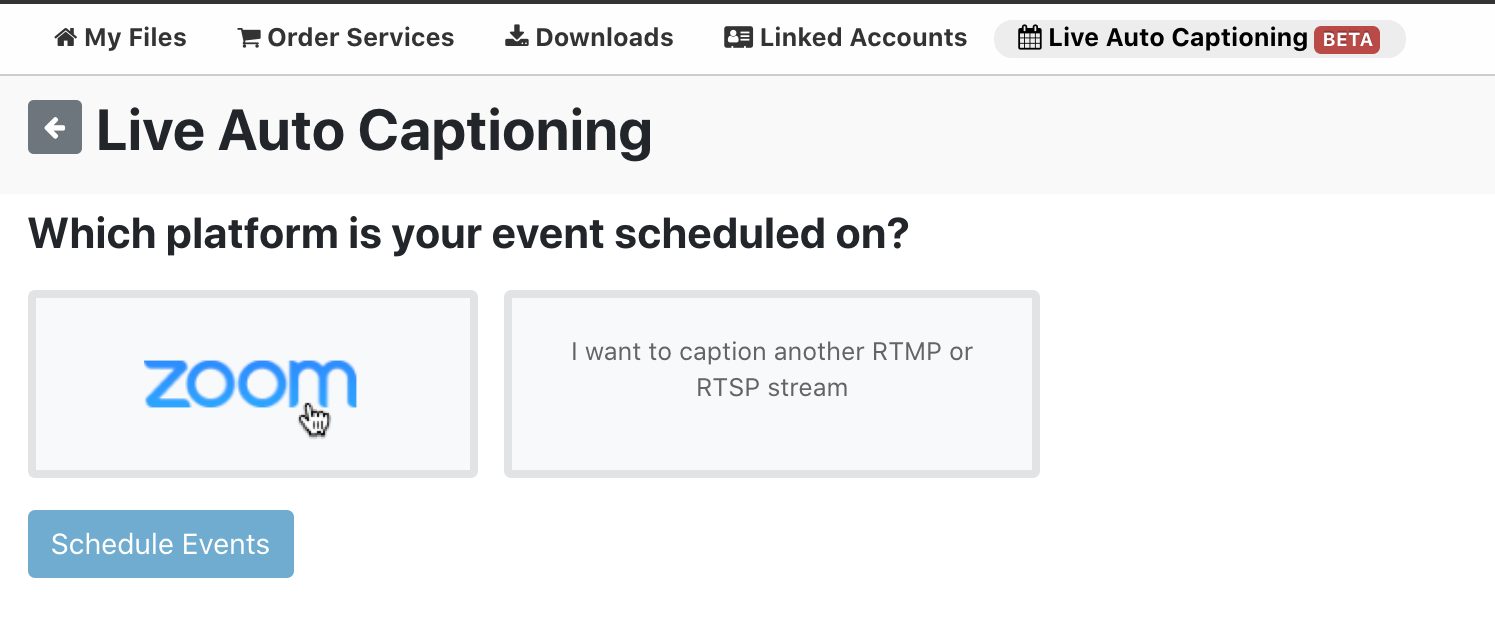

schedule new event section in 3Play Media



Under the Schedule New Event section on the right, select your Zoom integration.

Click the dropdown menu and select the appropriate user. All users in the linked Zoom account will appear.



schedule live auto captioning page on 3Play Media

All of the scheduled meetings for that user will display.

Check the box of the Zoom meeting that needs Live Auto Captioning, enter a start time and date, and click Schedule. The scheduled time for the Zoom meeting will appear as the default time, but any time can be selected.

The time selected here will be the earliest that 3Play live auto captions can be used on this meeting. This is the time that the 3Play live server will become available, and if this time is set after the beginning of the meeting, the captions will not be available immediately. In order to make sure captions are available in time for the participants to enter the meeting, it is best to schedule the 3Play captioning event 5 to 15 minutes before the scheduled time of the Zoom meeting.

Note: events are scheduled using Eastern Time unless the Time Zone Module has been activated and a new timezone has been configured at the user level.



Part 2

scheduled and in progress live auto captioning events page on 3play media



If ‘Generate Automatically’ was the setting selected when setting up the Zoom Meeting in Step 1, please skip to step 3.¬†

After both the Zoom meeting and the 3Play Captioning event are scheduled, a Stream URL and a Stream Key need to be added to the Zoom meeting in order to use live captions with a personal meeting ID.

The correct Stream URL and Stream Key can be found in the pending 3Play Live Auto Captioning Event.



upcoming meetings page on 3play media



Next, navigate to the scheduled Zoom meeting in zoom.us. Navigate to My Account > Meetings and click on the appropriate meeting.



navigation to "configure live stream settings"



Navigate to the bottom of the meeting details and click Configure Live Stream Settings.



live stream configuration page

Enter the Stream URL and Stream Key into the window that appears.

For Live streaming page URL enter 3playmedia.com or any valid URL. This field is required, but the value has no bearing on the zoom meeting or the live captions.

Note that the URL must begin with either “http://” or “https://



‚ě°ÔłŹ Step 3: Starting the Zoom Meeting

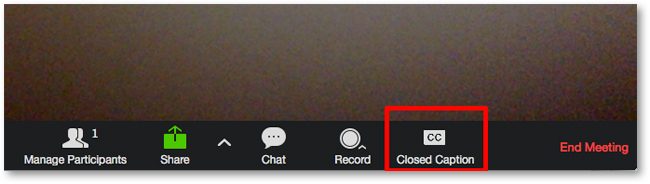

closed caption button on zoom meeting



After both the Zoom meeting is scheduled and the 3Play captioning event is ready and the time for the meeting has arrived, start the Zoom meeting.

Once the Zoom meeting has begun, select the Closed Caption button.

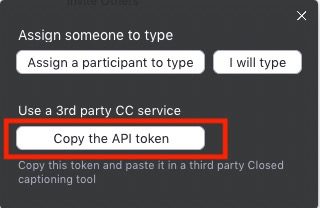

copy the API Token page in zoom



Click “Copy the API token“.



‚ě°ÔłŹ Step 4: Paste the Zoom API Token for the Zoom Meeting into the 3Play Live Event

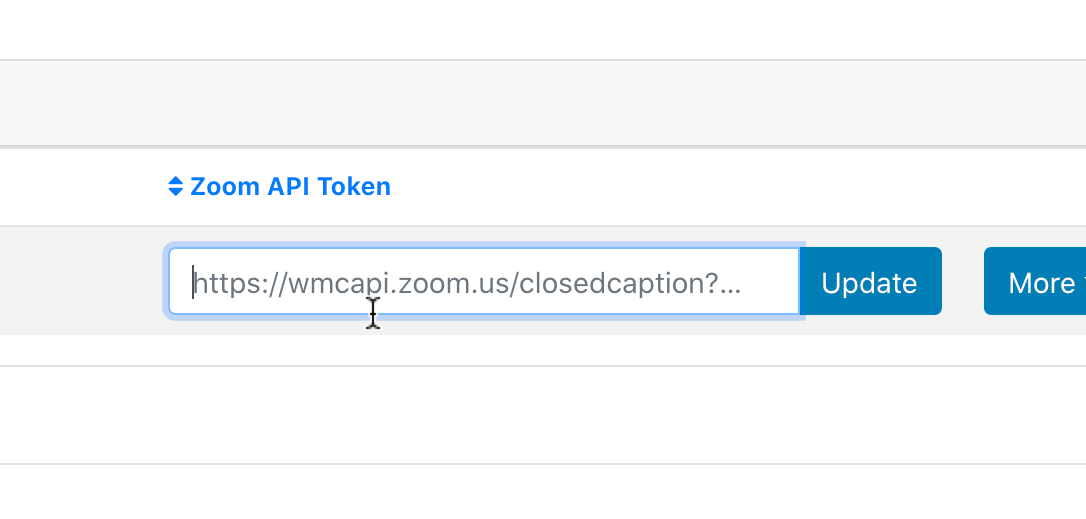

scheduled live auto captioning events on 3play media



You should now see this meeting under the Scheduled and In Progress Live Auto Captioning Events section of the Live Auto Captioning page.

Paste the API Token from Step 3 into the Caption Ingest URL field, then click Update.



‚ě°ÔłŹ Step 5: Begin Live Streaming the Meeting

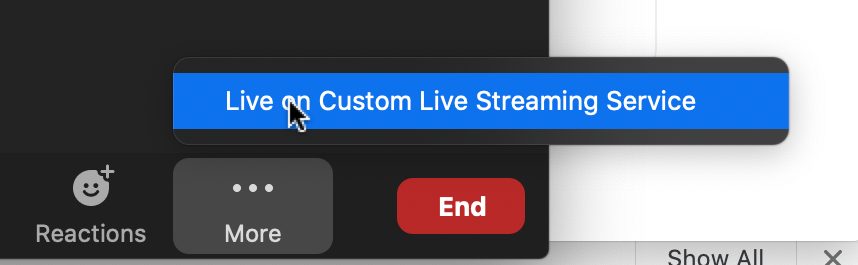

more option in zoom meeting



Return to your Zoom Meeting. On the bottom bar, click More > Live on Custom Live Streaming Service.

*This should be done at or shortly after the Live Event start time scheduled in 3Play.*

If the event in 3Play is schedule for 3:00 pm but you attempt to go live at 2:58 pm, the 3Play live server will not be ready and the meeting will not be able to go live. Please wait until the 3Play live captioning event start time to try again.

As a warning, going Live on Customer Live Streaming Service will open a web page to indicate that the meeting is in the process of going live. The Zoom meeting will persist, and that window can be closed at any time after the meeting has successfully gone live.

If a personal meeting ID was used for the meeting, and the direction is step 2 – part 2 were¬†not followed, the¬†Stream URL and¬†Stream Key from 3Play’s corresponding live event (the one schedule in step 2 – part 1) will now be needed. The web page will open and ask for these details, which can be found on the 3Play live event in the 3Play account system.

For live streaming page URL, enter 3playmedia.com or any website. This field is required but has no bearing on the zoom meeting or the live captions.



broadcast page on zoom meeting

Captions should now appear within 5-10 seconds.



message in zoom that says unable to live stream to the custom service



If you get a message from Zoom such as the one above saying “unable to live stream to the custom service”, please confirm the correct Zoom API token was pasted into 3Play in step 4.

If so, Zoom is likely encountering high traffic, and captions will likely appear within a minute or two.
